Product Name:

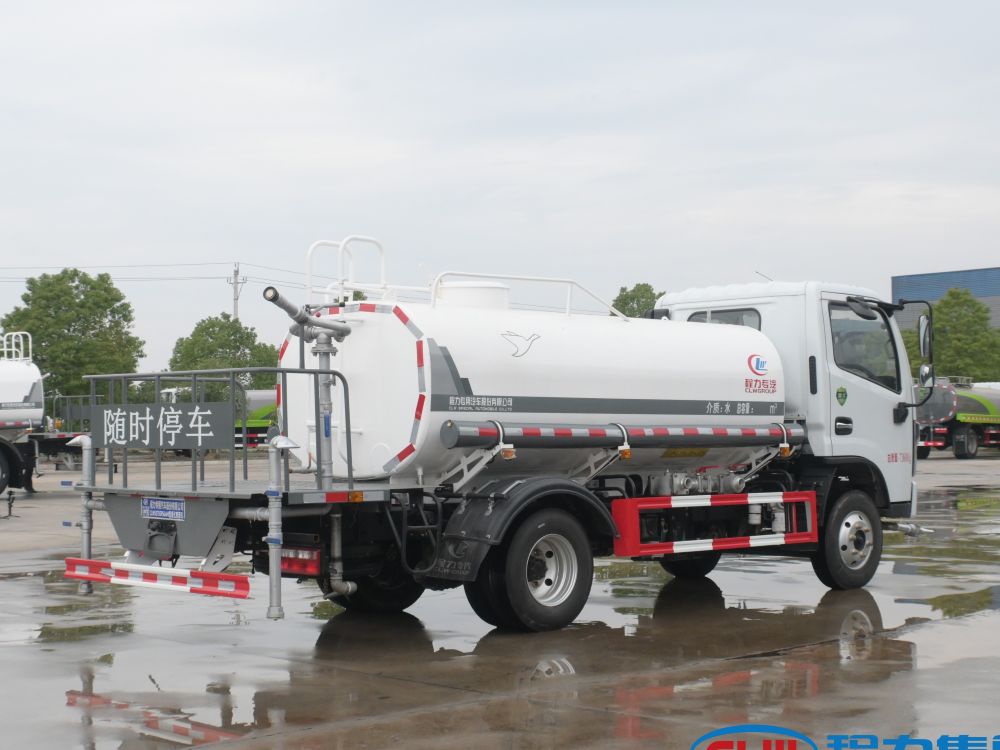

Chengliwei CLW5075GPSAWH greening spraying truck

Dimensions:

6513,5995×2060×2400,2700(mm)

Emission standard:

National VI

Cargo box size:

××(mm)

Gross Vechile Weight (GVW):

7360(Kg)

Approach/departure angle:

18/10,18/13(°)

Rated Payload:

3770,3705(Kg)

Front/ rear overhang:

1055/2150,1055/1632(mm)

Curb weight:

3460(Kg)

Maximum speed:

110(km/h)

Chassis Parameters

Fuel type:

Diesel

Chassis model:

EQ1075SJ3CDF

Number of axles:

2

Front wheel tread:

1525,1519,1503,1613,1540(mm)

Wheelbase:

2700,2950,3308,3600,3800,2800(mm)

Rear wheel tread:

1498,1516,1586,1670,1650,1800,1546(mm)

Number of passengers in the cab:

(people)

Number of springs:

6/6+5,3/3+3,5/4+3,6/4+3,6/5+2,6/3+3,3/6+5,3/3+2,2/2,3/8+6,7/10+7,8/10+7

Number of tires:

6(pcs)

Axle load:

2640/4720

Tire specifications:

7.00R16,7.00R16LT,7.00R16LT 14PR,7.50R16LT 16PR

Engine Parameters

Engine Model:

Engine Manufacturer

Displacement(ml)

Power(kw)/horsepower(PS):

CY4BK461

Dongfeng   Chaoyang Chaochai Power Co., Ltd.

3707

95/129

CA4DB1-11E6

China   First Automobile Group Co., Ltd.

2207

81/110

CY4BK161

Dongfeng   Chaoyang Chaochai Power Co., Ltd.

3856

105/142

D20TCIF1

Kunming   Yunnei Power Co., Ltd.

1999

93/126

Q28-130E60

Anhui   Quanchai Power Co., Ltd.

2800

96/130

H20-120E60

Anhui   Quanchai Power Co., Ltd.

2000

90/122

CA4DB1-13E6

China   First Automobile Group Co., Ltd.

2207

95/129

YCY24140-60

Guangxi   Yuchai Machinery Co., Ltd.

2360

103/140

D20TCIF11

Kunming   Yunnei Power Co., Ltd.

1999

93/126

Q23-115E60

Anhui   Quanchai Power Co., Ltd.

2300

85/115

ZD30D16-6N

Dongfeng   Light Engine Co., Ltd.

2953

120/163

M9T-600

Dongfeng   Light Engine Co., Ltd.

2298

105/142

Q23-136E60

Anhui   Quanchai Power Co., Ltd.

2300

100/136

Q23-132E60

Anhui   Quanchai Power Co., Ltd.

2300

97/131

YCY24120-60

Guangxi   Yuchai Machinery Co., Ltd.

2360

88/119

Q25-152E60

Anhui   Quanchai Power Co., Ltd.

2493

112/152

YN25PLUS160B

Kunming   Yunnei Power Co., Ltd.

2499

114/155

D20TCIF61

Kunming   Yunnei Power Co., Ltd.

1999

103/140

YCY24155-61A

Guangxi   Yuchai Machinery Co., Ltd.

2360

113/153

Q25N-152E60

Anhui   Quanchai Power Co., Ltd.

2496

112/152

ZD25D16-6D

Dongfeng   Light Engine Co., Ltd.

2499

120/163

Q25D-162E60

Anhui   Quanchai Power Co., Ltd.

2496

116/157

Q25A-150E60

Anhui   Quanchai Power Co., Ltd.

2496

110/149

Q

Anhui   Quanchai Power Co., Ltd.

2300

103/140

Other:

1. The total   capacity of the tank is 3.88 cubic meters, and the effective volume of the   tank is 3.70 cubic meters; 2. This model only uses a 3308mm wheelbase   chassis, and the tank's overall dimensions (length ×   long axis ×   short axis) are (mm): 3400×1500×1100;   3. The side protection and rear lower protection devices are made of Q235B   material and are bolted. The rear lower protection dimensions are: 120×50   (mm), and the height from the ground is 370mm. 4. ABS system manufacturer,   model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd., ABS/ASR-12V-4S/4M.   5. Special device: tank, mainly used for watering and landscaping. 6. The   height of the vehicle when the spray unit is equipped with a rear platform   is: 2700mm, and the height of the vehicle when the small platform is selected   is: 2400mm. 7. Optional painting, optional high-position shower, optional   electronic water cannon, optional small platform, optional forward flush,   optional LED arrow light arc spray, optional front hedge and duckbill,   optional forward flush sprinkler device behind the cab and in front of the   tank, optional pneumatic valve, optional vertical water-cooled fog cannon,   optional horizontal water-cooled fog cannon.
