Product Name:

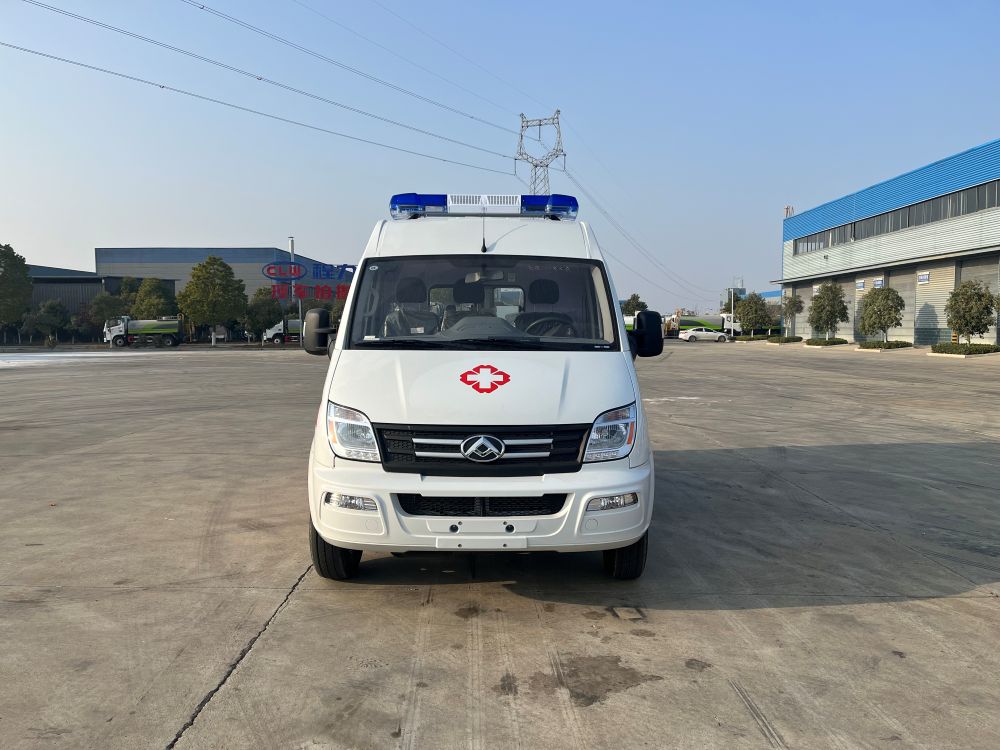

Chengli CL5040XJHYS6 ambulance

Dimensions:

4950,5160,5035×1998×2370,2570,2480(mm)

Emission standard:

National VI

Cargo box size:

××(mm)

Gross Vechile Weight (GVW):

3800(Kg)

Approach/departure angle:

26/17,26/14(°)

Rated Payload:

(Kg)

Front/ rear overhang:

865/985,865/1195,865/1070(mm)

Curb weight:

2460(Kg)

Maximum speed:

160,100,150(km/h)

Chassis Parameters

Fuel type:

Diesel

Chassis model:

SH6521A2DB

Number of axles:

2

Front wheel tread:

1734(mm)

Wheelbase:

3100(mm)

Rear wheel tread:

1728(mm)

Number of passengers in the cab:

5,7,8(people)

Number of springs:

-/2

Number of tires:

4(pcs)

Axle load:

1760/2040

Tire specifications:

215/75R16LT

Engine Parameters

Engine Model:

Engine Manufacturer

Displacement(ml)

Power(kw)/horsepower(PS):

SC20M139Q6

Shanghai   New Energy Automobile Technology Co., Ltd.

1996

102/138

SC20M125.1Q6

Shanghai New Energy Automobile   Technology Co., Ltd.

1996

93/126

SC20M147Q6

Shanghai New Energy Automobile   Technology Co., Ltd.

1996

108/146

Other:

1. The vehicle is equipped with medical equipment cabinets,   stretchers, special vehicle sign lights and sirens and other special rescue   equipment; 2. Optional masks and body exterior decoration patterns; 3.   Equipped with a driving recorder with satellite positioning function, the   passenger airbag may not be installed. ABS manufacturer: Bosch Automotive   Components (Suzhou) Co., Ltd., Bosch Automotive Components (Suzhou) Co.,   Ltd., ABS model: ABS 9, ESP9. Engine maximum net power: 100.5kW. 4. Optional   direct-powered ETC on-board device, 5. Optional body front face, optional   wheels. 6. Extended engine SC20M125.1Q6. The vehicle is equipped with an   automobile event data recording system (EDR), optional wheels with the   chassis, optional interior, and optional exterior style; SC20M125.1Q6 maximum   net power: 91.5kW, maximum speed is 150km/h, optional speed limiter, speed   limit 100km/h.
